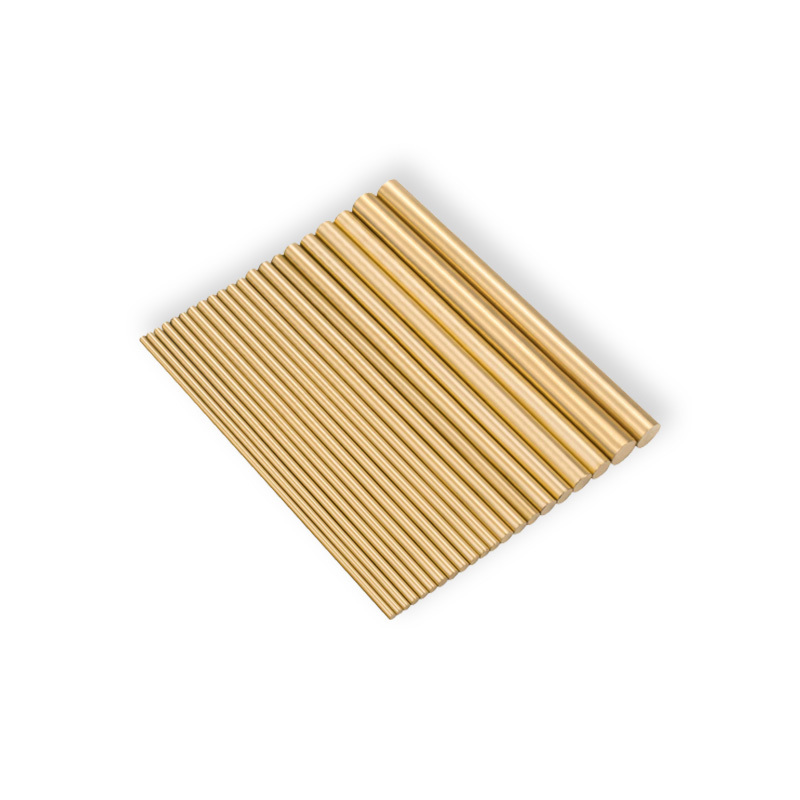

C26100 Copper Bar

Has a very good plasticity (brass is the best) and high strength, can be good machining performance, easy welding, the general corrosion is very stable, but easy to produce corrosion cracking.
  • Commodity name: C26100 Copper Bar

Category:

Keyword:

C26100 Copper Bar

  • PRODUCT DESCRIPTION
  • Product Description

    Has a very good plasticity (brass is the best) and high strength, can be good machining performance, easy welding, the general corrosion is very stable, but easy to produce corrosion cracking.


    Product Parameters

    Diameter:

    3mm-800mm,or customized

    Length:

    500-12000mm,or customized

    Processing:

    Custom

    Standard:

    ASTM,AISI,JIS,GB, DIN,EN

    Brand

    C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920,C10930,

    C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300,C12500,C14200,

    C14420,C14500,C14510,C14520,C14530,C17200,C19200,C21000,C23000,C26000,

    C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500,C60800,

    C63020,C65500,C68700,C70400, C70620,C71000,C71500,C71520,C71640,C72200,

    T1,T2,T3,TU1,TU0,TU2,TP1,TP2,TAg0.1,ect.

    Surface:

    Grinding, polishing, brightening, oiling, hair thread, brush, mirror, sandblasting or processing as required

    Certification:

    ISO.SGS.BV

    Payment Method:

    FOB,CRF,CIF,EXW Acceptable

    Port of Loading:

    Any port in China

    Delivery time:

    received.30%After deposit7-15working day



    chemical composition

    Copper

    With:

    Zinc

    Zn:

    Lead

    Pb:

    Iron

    Fe:

    68.5~71.5

    Allowance

    ≤ 0.05

    ≤ 0.05

    Arsenic

    As:

    Phosphorus

    P:

    Impurity:

    Oxygen

    O:

    0.02~0.06

    0.02~0.05

    ≤ 0.3

    -



    Mechanical properties

    Tensile Strength

    Kb (MPa):

    Elongation

    D10 (%):

    Elongation

    D d d.5 (%):

    Hardness:

    ≥ 340

    24

    28

    70~175HV



    Scope of application

    • USES AND APPLICATIONS OF COPPER

    Power industry:

    • Power transmission such as line cables, transformers, switches, plug components and connectors, etc.; motor manufacturing such as stator, rotor, shaft head and hollow wire, etc.; communication cables and residential electrical lines also need to use a large number of copper wires.

    Electronic industry:

    Electric vacuum devices such as high-frequency and ultra-high-frequency emission tubes, catheters, magnetrons, etc., they need high-purity oxygen-free copper and dispersion-strengthened oxygen-free copper. Copper printed circuits require a large amount of copper foil and copper-based brazing material. Integrationin the circuit

    Copper replaces aluminum in silicon chips for interconnect lines and lead frames.

    Energy and petrochemical industry:

    The main condenser tube plate and condenser tube of the energy industry thermal power plant are made of brass, bronze or cupronickel. Solar heaters are also often manufactured using copper tubing. Petrochemical industry copper and many copper alloys, used in large quantities to manufacture contact corrosion

    Various media containers, piping systems, filters, pumps and valves, various evaporators, heat exchangers and condensers, etc.

    Transportation Industry:

    In the shipbuilding industry, copper alloys include aluminum bronze, manganese bronze, aluminum brass, gunmetal (tin zinc bronze), white copper and nickel copper alloy (Monel alloy), etc. are all standard materials for shipbuilding. In warships and merchant ships, copper and copper alloys are generally used as aluminum bronze propeller,

    Bolts, condenser tubes, rivets, copper coated paint, etc. In the automotive industry, copper and copper alloys are mainly used in radiators, brake system pipelines, hydraulic devices, gears, bearings, power distribution and power systems, brake friction plates, washers and various joints,

    Accessories and trims, etc. The motors, rectifiers and control, braking, electrical and signal systems on railway trains also rely on copper and copper alloys to work. In addition, the electrification of railways requires a large amount of copper and copper alloys.in the aircraft

    Copper for wiring, hydraulic, cooling and pneumatic systems, aluminum bronze tubing for bearing retainers and landing gear bearings, and diamagnetic copper alloy for navigation instruments.

    Mechanical and Metallurgical Industries:

    In addition to a large number of copper used in motors, circuits, hydraulic systems, pneumatic systems and control systems in mechanical engineering, various transmission parts and fixing parts, such as cylinder liners, connectors, fasteners, gears, twisting parts, etc., all Need to reduce wear and lubrication with copper or copper alloy.

    The key component in continuous casting technology of metallurgical equipment-crystallizer, mostly made of high strength and high thermal conductivity copper alloy such as chromium copper, silver copper, etc., and the vacuum arc furnace and electroslag furnace water-cooled crucible in electrometallurgy are made of copper pipe, and various induction heating

    The induction coils are all made of copper tubes or special-shaped copper tubes, which are cooled by water.

    light industry:

    • Copper and copper alloy can be used in the manufacture of air conditioner heat exchanger, watch movement, paper machine mesh, roller, printing copper plate, fermentation tank lining, distillation pot, building decoration components, etc.

    Emerging industries and high-tech fields:

    • Copper is also used in emerging industries and high-tech fields, such as superconducting alloy jackets, ultra-low temperature medium containers and pipelines, rocket engine cooling village, high-energy accelerator magnet windings.
Comparison table of copper grades and standards of various countries
China Germany Europe International Standards USA Japan

GB

DIN

EN

ISO

UNS

JIS

TU2

OF-Cu

2.0040

Cu-OFE

CW009A

Cu-OF

C10100

C1011



SE-Cu

2.0070

Cu-HCP

CW021A



C10300





SE-Cu

2.0070

Cu-PHC

CW020A



C10300



T2

E-Cu58

2.0065

Cu-ETP

CW004A

Cu-ETP

C11000

C1100

TP2

SF-Cu

2.0090

Cu-DHP

CW024A

Cu-DHP

C12200

C1220



SF-Cu

2.0090

Cu-DHP

CW024A

Cu-DHP

C12200

C1220



SF-Cu

2.0090

Cu-DHP

CW024A

Cu-DLP

C12200

C1220

TPI

SW-Cu

2.0076

Cu-DLP

CW023A

Cu-DLP

C12000

C1201

H96

CuZn5

2.0220

CuZn5

CE500L

CuZn5

C21000

C2100

H90

CuZn10

2.0230

CuZn10

CW501L

CuZn10

C22000

C2200

H85

CuZn15

2.0240

CuZn15

CW502L

CuZn15

C23000

C2300

H80

CuZn20

2.0250

CuZn20

CW503L

CuZn20

C24000

C2400

H70

CuZn30

2.0265

CuZn30

CW505L

CuZn30

C26000

C2600

H68

CuZn33

2.0280

CuZn33

CW506L

CuZn35

C26800

C2680

H65

CuZn36

2.0335

CuZn36

CW507L

CuZn35

C27000

C2700

H63

CuZn37

2.0321

CuZn37

CW508L

CuZn37

C27200

C2720

HPb63-3

CuZn36Pb1.5

2.0331

CuZn35Pb1

CW600N

CuZn35Pb1

C34000

C3501

HPb63-3

CuZn36Pb1.5

2.0331

CuZn35Pb2

CW601N

CuZn34Pb2

C34200



H62

CuZn40

2.0360

CuZn40

CW509N

CuZn40

C28000

C3712

H60

CuZn38Pb1.5

2.0371

CuZn38Pb2

CW608N

CuZn37Pb2

C35000



HPb63-3

CuZn36Pb3

2.0375

CuZn36Pb3

CW603N

CuZn36Pb3

C36000

C3601

HPb59-1

CuZn39Pb2

2.0380

CuZn39Pb2

CW612N

CuZn38Pb2

C37700

C3771

HPb58-2.5

CuZn39Pb3

2.0401

CuZn39Pb3

CW614N

CuZn39Pb3

C38500

C3603



CuZn40Pb2

2.0402

CuZn40Pb2

CW617N

CuZn40Pb2

C38000

C3771



CuZn28Sn1

2.0470

CuZn28SnlAs

CW706R

CuZn28Sn1

C68800

C4430



CuZn31Si1

2.0490

CuZn31Sil

CW708R

CuZn31Sil

C44300





CuZn20Al2

2.0460

CuZn20Al2As

CW702R

CuZn20Al2

C68700

C6870

QSn4-0.3

CuSn4

2.1016

CuSn4

CW450K

CuSn4

C51100

C5111



CuSn5

2.1018

CuSn5

CW451K

CuSn5

C51000

C5102

QSn6.5-0.1

CuSn6

2.1020

CuSn6

CW452K

CuSn6

C51900

C5191

QSn8-0.3

CuSn8

2.1030

CuSn8

CW453K

CuSn8

C52100

C5210

BZn12-24

CuNi12Zn24

2.0730

CuNi12Zn24

CW403J

CuNi12Zn24

C75700



BZn12-26

CuNi18Zn27

2.0742

CuNi18Zn27

CW410J

CuNi18Zn27

C77000

C7701

BZn18-18

CuNi18Zn20

2.0740

CuNi18Zn20

CW409J

CuNi18Zn20

C76400

C7521



CuNi10Fe1Mn

2.0872

CuNi10Fe1Mn

CW352H

CuNi10Fe1Mn

C70600

C7060



CuNi30MnlFe

2.8820

CuNi30Mn1Fe

CW354H

CuNi30MnlFe

C71500

C7150
